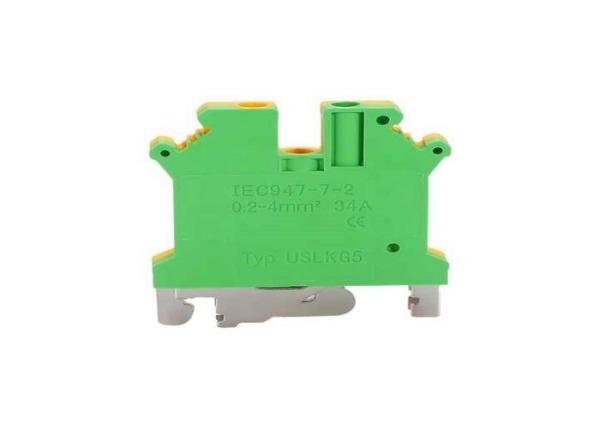

USLKG Ground Modular Terminal Block Din Rail Earth Grounding Wire Terminal block 35m㎡ cable connectors terminals

Application

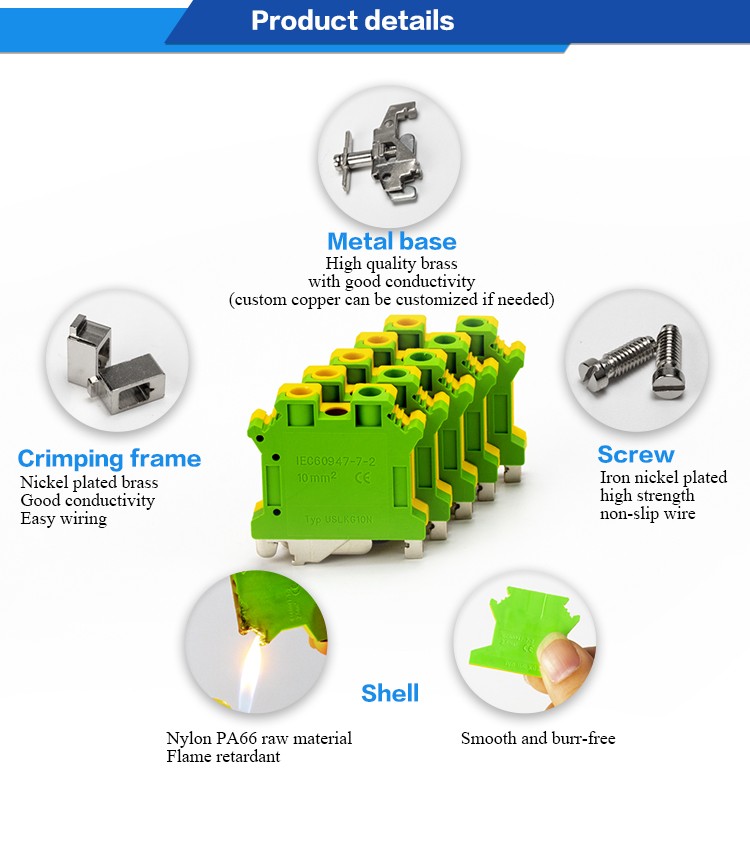

The internationally recognized screw connection meets the most stringent requirements and covers a wide area of application. For the most stringent requirements: the screw connection has also proven itself in the wiring of large conductor cross section Made from engineering flame retardants nylon PA66 with brass screw metal. With universal foot which can be installed on Din Rail NS 35. It can connect two conductors with ease, even large conductor cross sections are not a problem. Electric potential distribution can use fixed bridges in the terminal center or insertion bridges in the clamping space.

Specification

Module number	Crimping range( m㎡ )		Current	Voltage	Size ( mm )
	Rigid wire Flexible wire				Wide Height thickness
USLKG2.5	0.2~4	0.2~2.5	34A	800V	35		40	6
USLKG3	0.2~4	0.2~2.5	34A	800V	35		44	5
USLKG5	0.2~4	0.2~4	34A	800V	35		44	6
USLKG6	0.2~10	0.2~6	37A	800V	35		44	8
USLKG10	0.2~10	0.2~6	61A	800V	35		44	10
USLKG16	2.5~25	4~16	101A	800V	35		52.8	12
USLKG35	0.75~50	0.75~35	125A	800V	35		61	15
USLKG50	16~50	25~50	150A	800V	35		73	21
