OEM LC1 Magnetic Three Phases AC Electrical Contactor Switch 3 Poles LC1-D

Ask Lasest Price
Brand Name :	Rich or OEM
Model Number :	LC1D lc1-d
Certification :	CE/CB/CCC
Price :	$1.5-$20
Payment Terms :	T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :	100000pcs per month
Delivery Time :	3-20 days

Add to Cart

Product Details
Company Profile

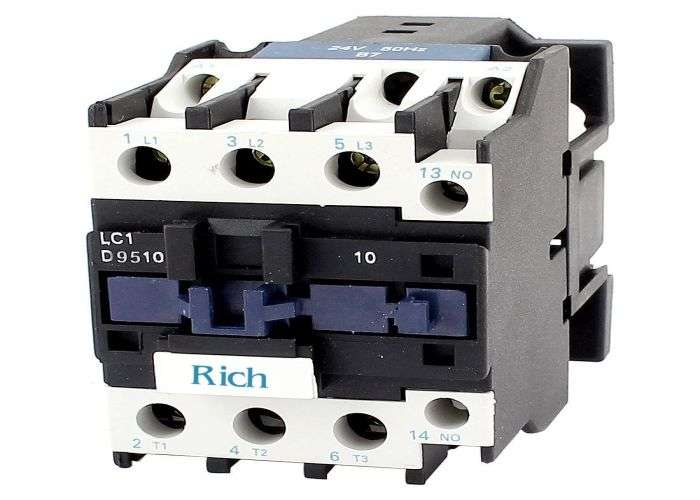

OEM LC1 Magnetic Three Phases AC Electrical Contactor Switch 3 Poles LC1-D

Factory OEM LC1 Magnetic Three Phases AC Contactor High Quality 3 Poles LC1-D Electrical Contactor Switch

Application:

LC1-D(CJX2) series AC Contactor is suitable for using the circuit up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting&controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter, With the thermal relay. It is combined into the electromagnetic starter. The Contactor is produced according to IEC60947-2.

Specification

Type		CJX2-D09	CJX2-D12	CJX2-D18	CJX2-D25	CJX2-D32	CJX2-D40	CJX2-D50	CJX2-D65	CJX2-D80	CJX2-D95
Rated workingcurrent (A)	AC3	9	12	18	25	32	40	50	65	80	95
Rated workingcurrent (A)	AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Standardpower ratingsof 3-phasemotors50/60Hz incategory AC-3	220/230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	380/400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	660/690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Rated heat current (A)		20	20	32	40	50	60	80	80	125	125
Electrical life	AC3 (x10⁴)	100	100	100	100	80	80	60	60	60	60
Electrical life	AC4 (x10⁴)	20	20	20	20	20	15	15	15	10	10
Mechanical life (x10⁴)		1000	1000	1000	1000	800	800	800	800	600	600
Number of the contacts	3P+NO					3P+NC+NO
Number of the contacts	3P+NC					3P+NC+NO

Standard Control Circuit Voltage

Volts

110

220

230

240

380

400

415

440

500

600

50Hz

60Hz

50/60Hz

Certifications

Packaging & Shipping

1. We will ship the items within 3-15 working days after the payment is reached.

2. All the goods will be packed in export carton or wooden case carefully. We will make sure all product is compete when it arrive. We guarantee that all the packaging is intact when it reaches its destination .

3. The package will be shipped by sea or by air, or by TNT, DHL, FedEx, UPS, EMS or your forwarder . Please inform us directly which method is your preferred way .
